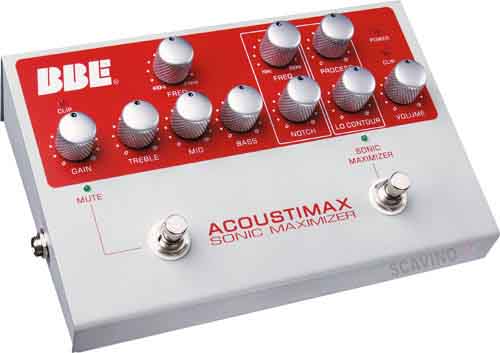

Preamplificatore BBE ACOUSTIMAX -
Processori di segnale bbe |
|

(CLICCA SULLA FOTO PER INGRANDIRE) |

|
 |
 |
 |
CARATTERISTICHE PRINCIPALI:
-
Frequency response
50Hz to 20kHz Treble ±12dB @ 10kHz Mid ±12dB @ 400kHz to
2.5kHz Bass ±12dB @ 60kHz Notch 0 to -12dB @ 70Hz to
250kHz
-
BBE L o Contour: +15dB @ 50Hz
-
Process: +15dB @ 10kHz
-
Maximum output +10dBu @ instrument jack Noise
-
Instrument jack: -98dBv (unity gain) L ine out: -88dBv
(+10dB gain)
-
Total harmonic distortion (THD) 0.05% @ 1kHz
-
Impedances Input: 2.2M Ohm T uner out: 2k Ohm
-
Line out: 1k Ohm
-
Instrument out: 2k Ohm XLR out: 600 Ohm (*
0dBu=0.775Vrms)
-
Power requirements D C inlet +12 VAC min. 200ma
|
|
|
|
