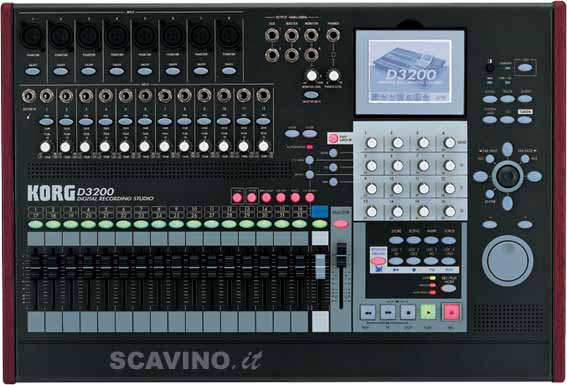

D3200 - Digital Recording Studio

Recorder Section:
Number of Tracks:
272 tracks (including virtual tracks)
32 tracks simultaneous playback
12 tracks simultaneous recording @ 48 kHz / 44.1 kHz 16-bit, (16 tracks, using 12 analog inputs, S/P DIF and Session DrumsT)
16 tracks simultaneous playback
12 tracks simultaneous recording @ 48 kHz / 44.1 kHz 24-bit

Recording Format:
24-bit / 16-bit uncompressed, 44.1 kHz / 48 kHz

Recording Time:
44.1 kHz, 16-bit: maximum 119 hours
*when using a 40 GB hard disk

Number of Songs:
100 songs per drive

Locate Points:
four per song

Mark Points:
100 per song (marks can be named)

Metronome / Drum Patterns:
660

MMC Functions:
Transmitted and received

CD-R/RW Functions:
Internal CD-R/RW, audio CD writing (Track At
Once, Disc At Once), backup / restore, audio file (WAV format) import (ISO 9660), system load

USB Functions:
Backup / restore, audio file (WAV format)
import / export (FAT16 / 32)
system load; USB2.0 supported

PC (USB) Drive Capacity:
2 / 4 / 8 GB

Track Editing:
Copy (overwrite / insert), erase, delete, swap, reverse, optimize, expand / compress, fade, normalize, erase punch noise, erase silence, noise reduction
Song Editing:
Copy, move, delete, rename, protect, save now

Display Format:
Calendar time, HDD remaining capacity, scene, mark, tempo map

Locate Format:
Hour / Min / Sec.ms
Hour / Min / Sec.Frame
Meas / Beat / Tick

MIDI Functionality:
Mixer control, effect control, MMC transmission / reception, MTC transmission / reception, MIDI Clock transmission

Mixer Section:
Internal Processing:
64-bit (maximum 69-bit)

Inputs:
44 channels (32 recorder channels, 12 sub-in)

Buses:
12 buses; 2 Eff Send buses, 2 AUX buses, 2 SOLO
buses (stereo), 2 CUE buses (stereo), 2 MASTER buses (stereo), 2 MONITOR buses (stereo)

Equalizer:
Recorder channels
1-24: 4-band full parametric EQ, Recorder channels
25-32: 2-band shelving EQ, Sub Mixer channels
1-12: 2-band shelving EQ,
Master track: 4-band full parametric EQ

Scene Memories:
100 scene per song


Effect Section:
Internal Processing:
56-bit

Structure:
8 Inserts (maximum), 2 Masters (maximum),
1 Final; All usable simultaneously at
44.1 kHz / 48 kHz

Programs:
128 presets, 128 users, 32 songs

Algorithms:
52


General:
Display:
320 x 240 pixel, four-level grayscale
movable LCD with backlight

Power Supply:
AC Local Voltage

Power Consumption:
47W

Dimensions:
21.54" (W) x 14.61" (D) x 4.53" (H) /
547 (W) x 371 (D) x 115 (H) mm

Weight:
17.20 lbs. / 7.8 kg


Principal Specifications:
Frequency Response:
10 Hz - 20 kHz ± 1 dB @ fs 44.1 kHz,
+4dBu, 10 kOhm load
10 Hz
