LEM SPN8A SPN 8 A - SP-N-8A - DIFFUSORI LEM 180W + 20W |
|
 |
- EIA output power
(1 kHz, THD 1%) High: 20 W
- Low: 180 W
- Total harmonic distorsion
(THD + Noise) Lower then 0,1%
- Input sensitivity + 4 dB
- Input impedance 30 kohms (balanced)
- 15 kohms (unbalanced)
- Power supply See label on the apparatus
- Sensitivity
- (SPL 1W/1m) 93,5 dB
- Max SPL 116 dB
- Frequency response 45 Hz - 22 kHz (-10 dB)
- Dispersion (OxV) 90° x 60°
- Crossover frequency 2,8 kHz @ 24 dB/oct.
- Components High: 1'' driver
- Low: 8'' neodymium woofer
- Construction High-density polypropilene
- metal grille
- 2 M6 flying points

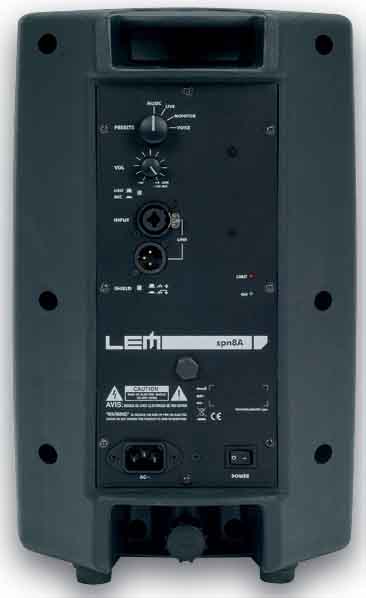

- Controls Volume, Shield, Presets selector
- Connections 1 XLR-F + 1 jack
- Dimensions
- (W x H x D) 260 x 410 x 264 mm /
10.2'' x 16.1'' x 10.4''
- Weight 8,2 kg / 18 lbs
|
 |
|
|
