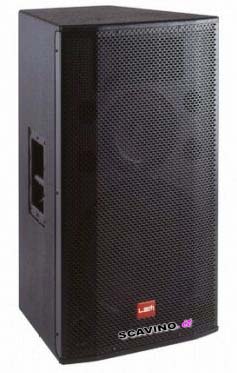

LEM T6A - T 6 A - CASSA LEM 600W IN LEGNO - |
|
 |
-
Components High: 1'' driver with CD horn
Mid: 8'' midrange
Low: 15'' woofer
-
Construction Laminated birch plywood with black
scratch-resistant paint; metal grid; metal handles and speaker
stand adapter
-
Dimensions
(W x H x D) 456 x 804 x 430 mm /
18'' x 31,7'' x 16,9''
-
Weight 37 kg / 81,4 lbs
-
Processor/amplifier specifications
Input Sensitivity: +4 dB (nominal) / -40dB (max)
Impedence: 20 kohms (balanced)
A/D converters 24bit
D/A converters 24bit
Dynamic range: 100dB
Sampling rate: 48kHz
Crossover Type: Bessel, Butterworth o Linkwitz-Riley
Frequency: variable 15.6Hz to 16kHz
Slope: 6, 12, 18 or 24 dB per octave
Equalizer 25 parametric bands
Type: peak, 6dB lo-shelf, 12dB lo-shelf, 6dB hi-shelf, 12dB
lo-shelf, notch
Gain: +/-15dB, variable with 0,5dB steps
Bandwidth: 0,05 to 3,00 octaves, variable with 0,05dB steps
Frequency: 15.6Hz to 16kHz
Alignment delay 189 ms max delay
Plugins Noise Gate, Anti-feedback, Multiband Compressor
Protections Independent PEAK LIMITER on each output
Long term power protection on each output
LFC - Low Frequency Control
EIA output power
(1 kHz, THD 1%) High: 200W
Low: 400W
Distorsion Lower then 0.02 %
-
Controls Volume, Presets selector
Connections 1 x combo (Line + Mic input)
Power supply See label on the apparatus
System specifications
Frequency response 45Hz - 20kHz (-10dB)
Sensitivity 126 dB max SPL continuous
Dispersion 90° x 65°
|
 |
|
|
